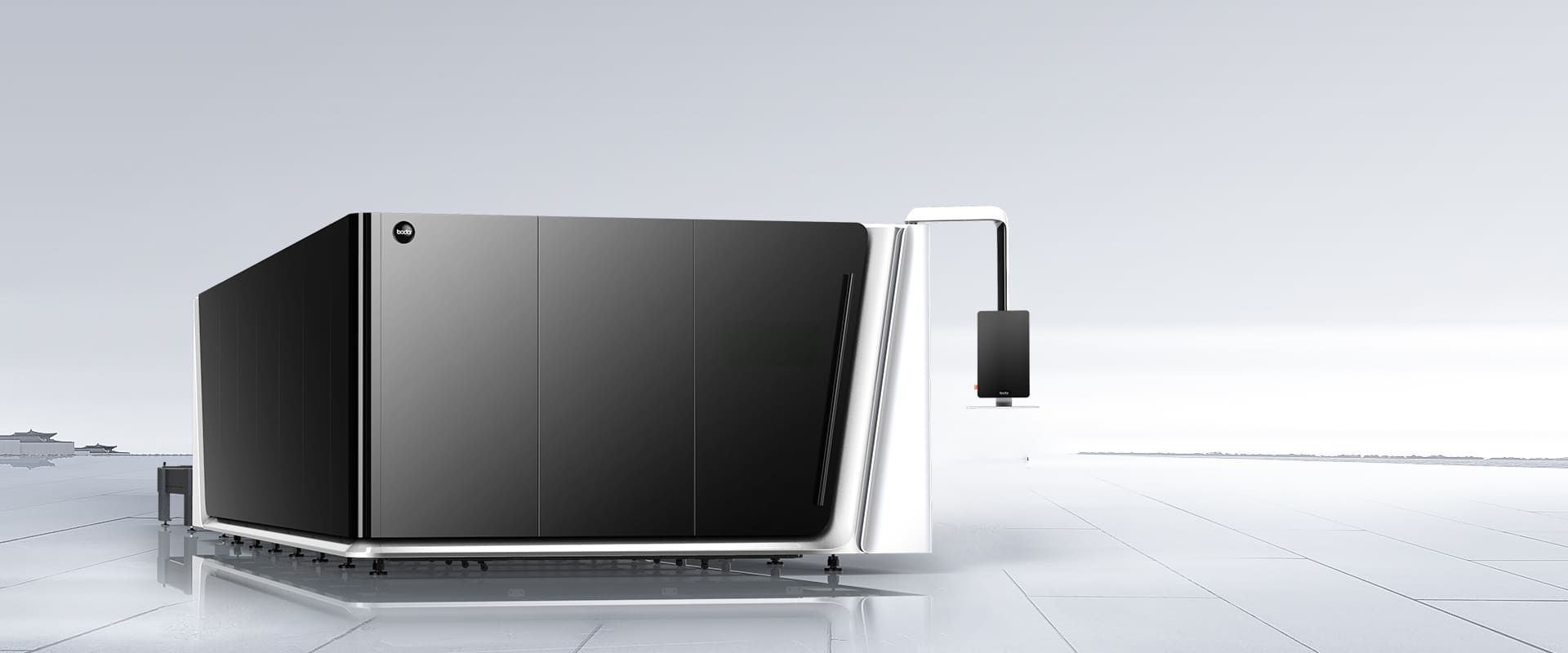

Bodor Dream Series

Description

Features & enhancements

Linear motor with magnetic levitation

By eliminating mechanical friction, the magnetic levitation technology enables smooth machinery operations. The liner motor can achieve acceleration up to 4.0G and axes speeds up to 200m/min.

One-click processing

Set up your tasks ahead of time and let Dream series do the rest. Once the operation begins, it will automatically complete edge searching, range checking, and cutting one after another. With Dream series, you can finish batch production easily without any repetitive procedures.

Active collision avoidance systems

BodorGenius, Bodor’s intelligent laser head, uses sensors and algorithms to detect potential obstacles like warped edges and automatically avoids a collision. It largely ensures the stability as well as operating efficiency in the cutting process.

Anti-burning mineral casting plate

Bodor’s newly developed anti-burning plate, made by mineral casting, provides numerous advantages in slag removal, operations, modular design, fire resistance, and hardness. When in use, the plate prevents material residue and avoids heat damage to the machine bed generated by cutting, essentially lowering maintenance costs and offering better durability. Its lightweight structure also makes it easy to replace during regular maintenance.

Intelligent remnant layout

To achieve maximum material utilization, all you need to do is uploading cutting shapes to the control system via your mobile phone. Dream series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the better and more economical the process. Enjoy the benefits of significantly increased cost savings.

Lightning piercing

The technology offers rapid, precise piercing with reduced amount of time. It features efficiency monitored processes, focus adjustment, and integration with BodorGenius. This enables quick piercing in sync with the cutting head’s movement, optimizing operations for medium-thick plates without extra time or motion.

Automatic nozzle changer

Dream series can automatically replace nozzles without any human intervention. It also provides automated nozzle cleaning, lowering costs and saving time in operation.

One second edge finding

One-second edge finding ensures rapid material positioning and focus calibration. With an optical camera, the system automatically identifies the material’s position and locates its origin and angular offset within 1 second. This visual and algorithmic innovation simplifies operating procedures and completes cutting, recognition, and focus compensation in one go, largely reducing working time.

Intelligent pressure adjustment

Based on the air pressure deviation feedback from the system, Dream series automatically adjusts pressure without manual intervention. The air pressure set in the software corresponds directly to the actual cutting air pressure in use, ensuring operating safety and efficiency.

Specifications & parameters
